5555153-1
Manufacturer:
TE Connectivity
Mfr.Part #:
5555153-1
Datasheet:
Description:

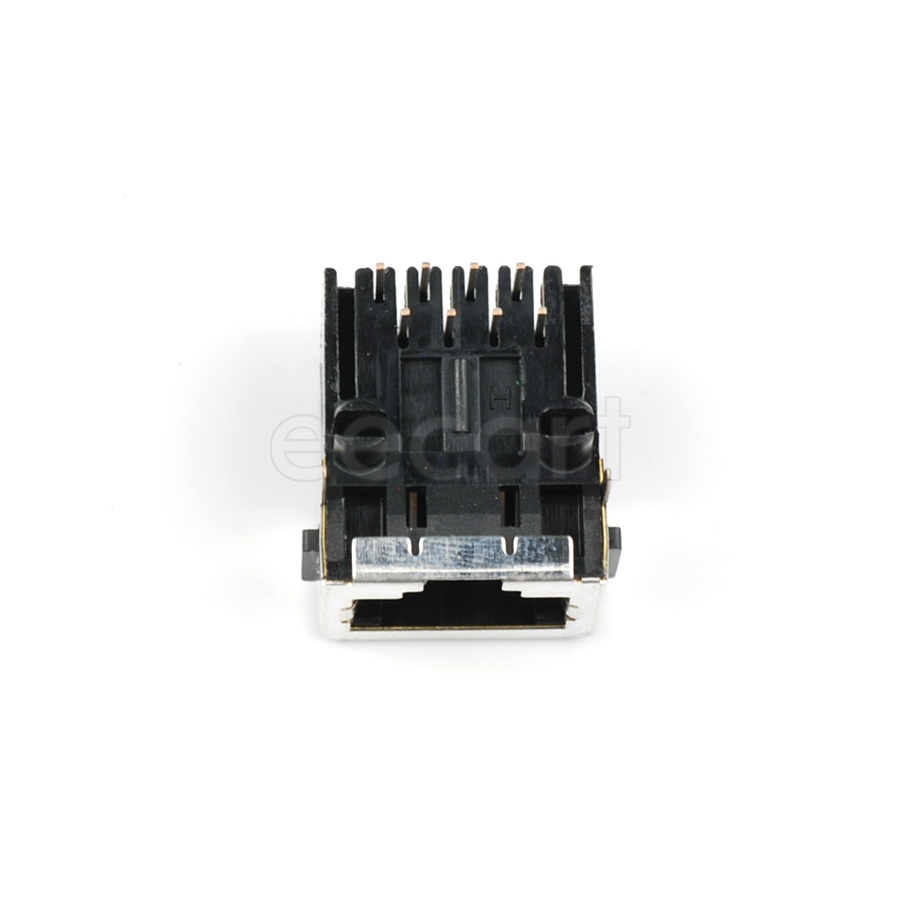

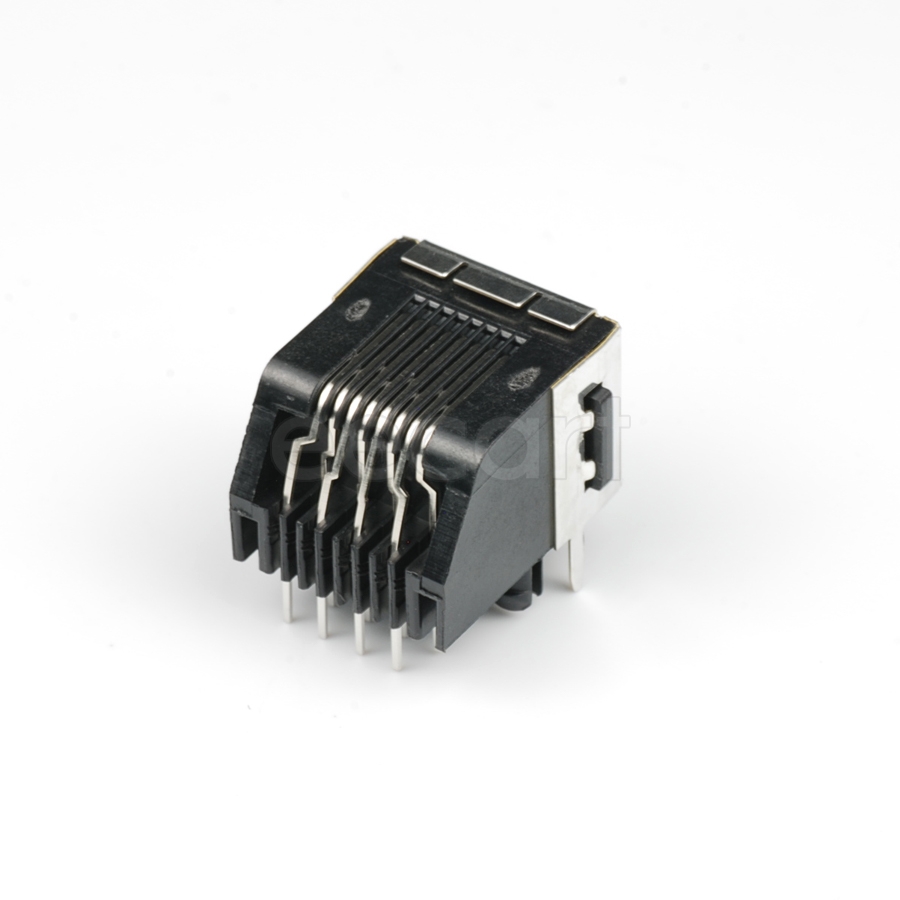

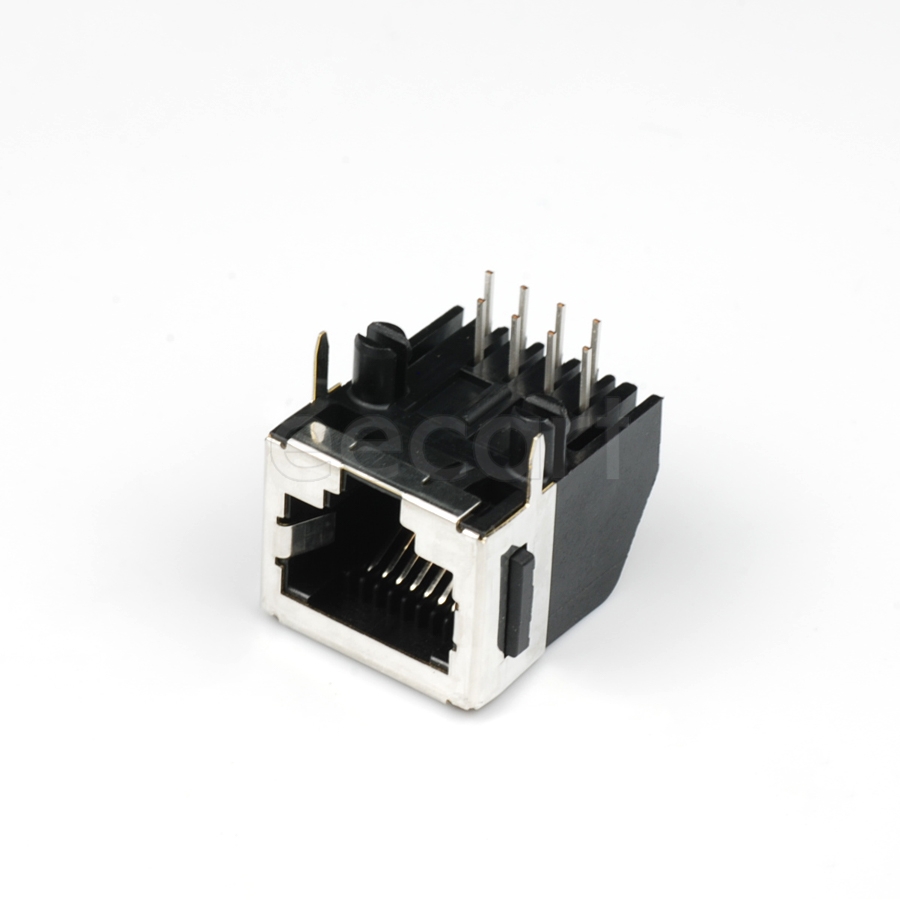

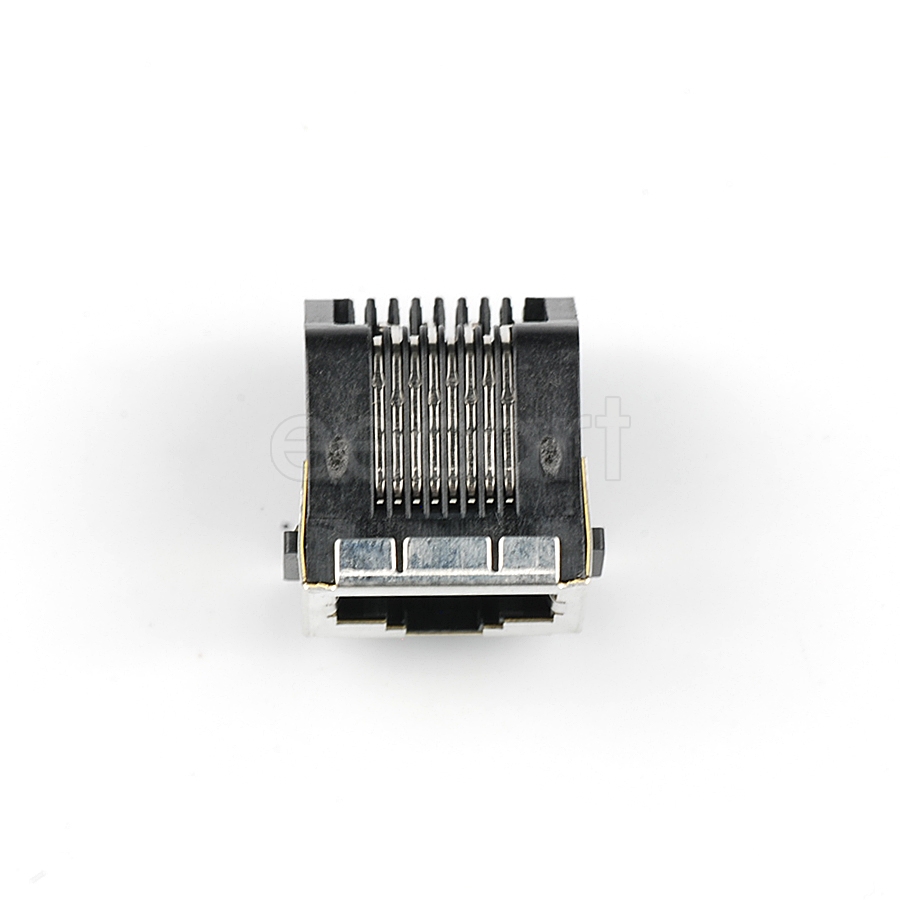

Modular / Ethernet Connectors Through Hole RJ45 Male
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tray |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| Contact Plating | Tin, Gold, Tin over Nickel |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Flammability Rating | UL 94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Active |
| Color | Black |
| Gender | Male |
| Shielding | Shielded |
| Number of Contacts | 8 |
| Mounting Style | Through Hole |
| lead free status | Lead Free |
| operating temperature | -40.0 °C to 85.0 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Direction(Counting Sequence) | Down |
| Number of Positions | 8 |
| Housing Material | Polyester |
| Number of Ports | 1 |
| size width | 16.0 mm |
| size length | 18.4 mm |
| size height | 12.7 mm |
| elv compliant | Compliant |
| Housing Color | Black |
| Mounting Angle | Right Angle |
| Performance Category | Cat 3 |
| Accessory Type | |
| USOC Codes | RJ45 |
| Number of Positions/Contacts | 8P8C |
Stock: 1805
Distributors
pcbx
pcbxUnit Price$0.96058
Ext.Price$0.96058
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.96058 | $0.96058 |
| 10 | $0.78931 | $7.89310 |
| 25 | $0.73495 | $18.37375 |
| 50 | $0.68433 | $34.21650 |
| 100 | $0.63720 | $63.72000 |
| 300 | $0.59331 | $177.99300 |
| 500 | $0.55245 | $276.22500 |
| 1000 | $0.51439 | $514.39000 |
